Diagrams¶

Markdown doesn’t have to be flat text. Here’s how we wire live Mermaid and Draw.io diagrams straight into TeXSmith, no opaque binaries, friendly diffs.

Here is the source:

---
press:
  subtitle: "An Overview of drawio and mermaid diagram integration"
  paper:
    margin: 2cm
---
# Diagram Integration

You can embed Draw.io or Mermaid diagrams directly in Markdown. This keeps
technical documentation close to the visuals it describes, and the package
takes care of converting each diagram to an image that the final LaTeX
document can reference automatically.

## Draw.io Diagram

![Euclidean GCD](pgcd.drawio){width=60%}

/// caption
Euclidean algorithm for the greatest common divisor
///

## Mermaid Diagram

```mermaid {width=80%}
%% Vegetable harvesting algorithm
flowchart LR
    start(Start) --> pick[Dig up]
    pick --> if{Cabbages?}
    if --No--> step[Move forward one step]
    step --> pick
    if --Yes--> stop(End)
```

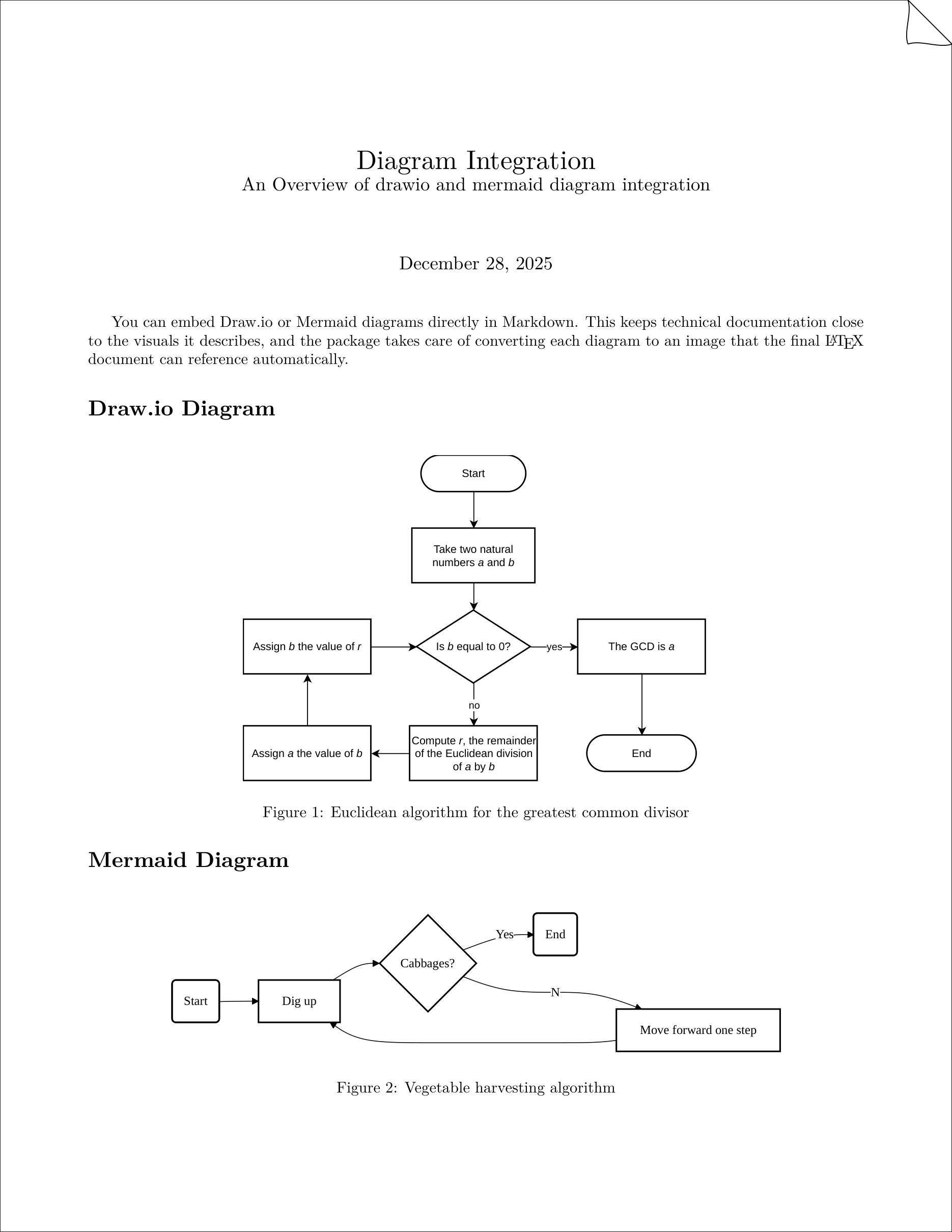

Rendered Markdown¶

Obviously everything built with TeXSmith can also be rendered in this very Markdown file:

Draw.io Diagram¶

Mermaid Diagram¶

%% Vegetable harvesting algorithm
flowchart LR
    start(Start) --> pick[Dig up]
    pick --> if{Cabbages?}
    if --No--> step[Move forward one step]
    step --> pick
    if --Yes--> stop(End)

Draw.io backend choice¶

TeXSmith now tries a Playwright-based exporter first (cached under ~/.cache/texsmith/playwright), falling back to the local drawio/mmdc CLI and finally the Docker image. Force a specific path with --diagrams-backend=playwright|local|docker if needed.
