Getting Started¶

In our journey to typeset beautiful documents with TeXSmith, we'll start with the basics:

1. Turn Markdown or HTML into LATEX/PDF.
2. Drop TeXSmith into an existing MkDocs site.
3. Drive it from Python.

Hop to the section you need or read straight through for the big picture.

Installation¶

To install TeXSmith, use your preferred Python package manager:

pip install texsmith

pipx install texsmith

uv tool install texsmith

For basic use, you don't need anything else. TeXSmith bundles Tectonic for LATEX builds and will auto-install the required tools on demand.

Convert a Markdown file to LATEX¶

By default TeXSmith writes LATEX to stdout. Pipe it or direct it into a folder. HTML works too:

cat << EOF | texsmith
# Title

Some **bold** text.

- Foo
- Bar
EOF
\section{Title}\label{title}

Some \textbf{bold} text.

\begin{itemize}
\item{} Foo
\item{} Bar

\end{itemize}

$ echo "# Title\nSome **bold** text." > sample.md
$ texsmith sample.md --output build/
\chapter{Title}\label{title}

Some \textbf{bold} text.

$ echo "<h1>Title</h1><p>Some <strong>bold</strong> text.</p>" > sample.html
$ texsmith sample.html
\chapter{Title}
Some \textbf{bold} text.

Generate a PDF¶

Want the full PDF? Start with our playful booby example or create your own booby.md:

---
press:
  title: Booby
  author: Yves Chevallier
  date: 2025-11-16
  template: article
---
## Introduction

Boobies are seabirds in the genus *Sula*, family Sulidae. They are
large, long-winged birds that plunge-dive for fish. The name "booby"
originates from the Spanish word "bobo", meaning "stupid" or "clown",
due to the birds' apparent lack of fear of humans.

![Booby](booby.png){width=30%}

## Particularities

Boobies have several distinctive features:

- They have brightly colored feet, which they use in mating displays.
- They are known for their spectacular diving ability, plunging into
  the water from great heights to catch fish.

Notice the front matter up top: it carries the title, author, date, and template to use.

Then let TeXSmith crunch it:

texsmith booby.md --output build/ -apaper=a5 --build

With Tectonic as the default engine, fonts, packages, and dependencies resolve themselves on demand (including Tectonic if it is missing). Nothing else to install.

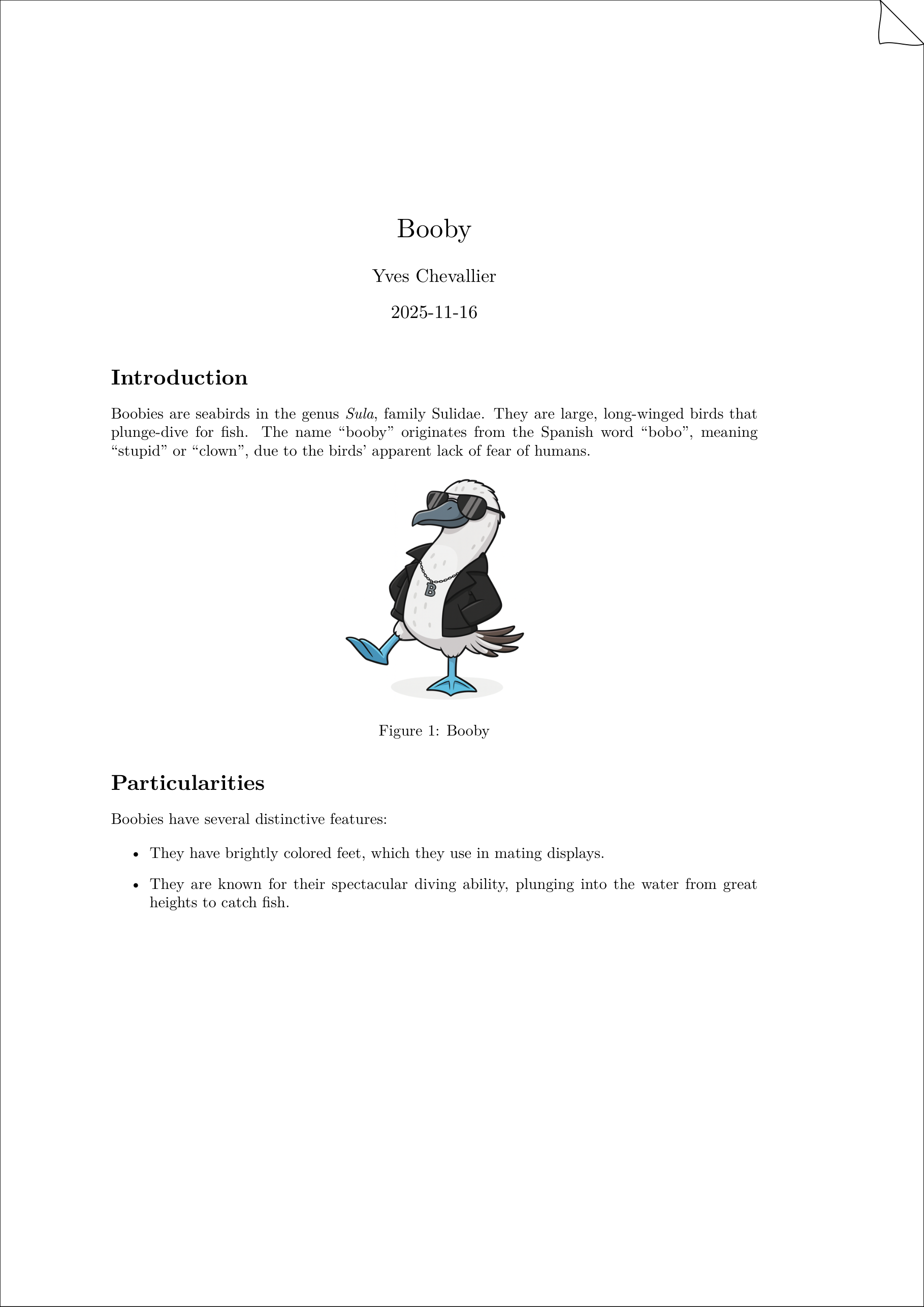

Enjoy a fresh PDF at build/booby.pdf:

Peek inside build/ to find booby.tex. Swap --template when you want a different LATEX project layout or polish level:

texsmith booby.md --template article --output-dir build

The default toolchain is tectonic, which auto-installs itself and required packages. If you prefer using your system LATEX installation, specify --engine lualatex or --engine xelatex instead. Both commands yield doc.pdf in the current directory. Open it to see the rendered output.

If you want to customize the layout, choose a template with --template article, --template book or --template your-own-template.

You may want to pass additional LATEX options such as -apaper=a4 or -amargin=1in to tweak page geometry:

Optional prerequisites¶

LATEX distribution

Install TEX Live, MiKTeX, or MacTeX if you want TeXSmith to hand off builds to latexmk (--engine lualatex / --engine xelatex). The default route uses Tectonic, which auto-installs itself and required packages.

Diagram tooling

Mermaid-to-PDF (minlag/mermaid-cli) conversion falls back to Docker. Install Docker Desktop (with WSL integration on Windows) or register your own converter if Mermaid diagrams are common in your docs.

Draw.io and Mermaid diagrams try a Playwright exporter first (cached under ~/.cache/texsmith/playwright), then the local CLI, then Docker (rlespinasse/drawio-desktop-headless / minlag/mermaid-cli). Use --diagrams-backend=playwright|local|docker to pin a specific backend.

Fonts

TeXSmith ships with Noto fallback for wide Unicode coverage. Add your own fonts if you want a specific script or branded look.

Legacy LATEX accents

By default TeXSmith emits Unicode glyphs. If you need legacy LATEX accent macros, pass --legacy-latex-accents on the CLI or set ConversionRequest(legacy_latex_accents=True) in the API.

Use the Python API¶

TeXSmith also ships as a Python library. Create demo.py:

from pathlib import Path
from texsmith import Document, convert_documents

bundle = convert_documents(
    [Document.from_markdown(Path("intro.md"))],
    output_dir=Path("build"),
)

print("Fragments:", [fragment.stem for fragment in bundle.fragments])
print("Preview:", bundle.combined_output()[:120])

Run the snippet with python demo.py. The API mirrors the CLI; reach for ConversionService or TemplateSession when you need fine-grained control over slot assignments, diagnostics, or template metadata.

Convert a MkDocs site¶

Point TeXSmith at a MkDocs site after mkdocs build renders clean HTML:

# Build your MkDocs site into a disposable directory
mkdocs build

# Convert one page into LaTeX/PDF-ready assets
texsmith build/site/guides/overview/index.html \
  --template article \
  --output-dir build/press \
  docs/references.bib
