Captions¶
Markdown doesn’t ship with a native caption primitive for figures or tables. The closest thing is image alt text:
Alt text exists for accessibility, not for captions. Some browsers show it as a tooltip, but it is not a real caption and you can’t style it separately. Moreover, since it is inserted in an HTML tag's attribute, it can’t contain block elements or complex formatting.
Fortunately, pymdownx.blocks.captions adds proper caption blocks:
As seen in [this figure](#my-figure), the results are significant.
/// caption #my-figure
This is the caption for the figure.
///
Enable numbering and each document gets its own sequence starting at 1.
LATEX¶

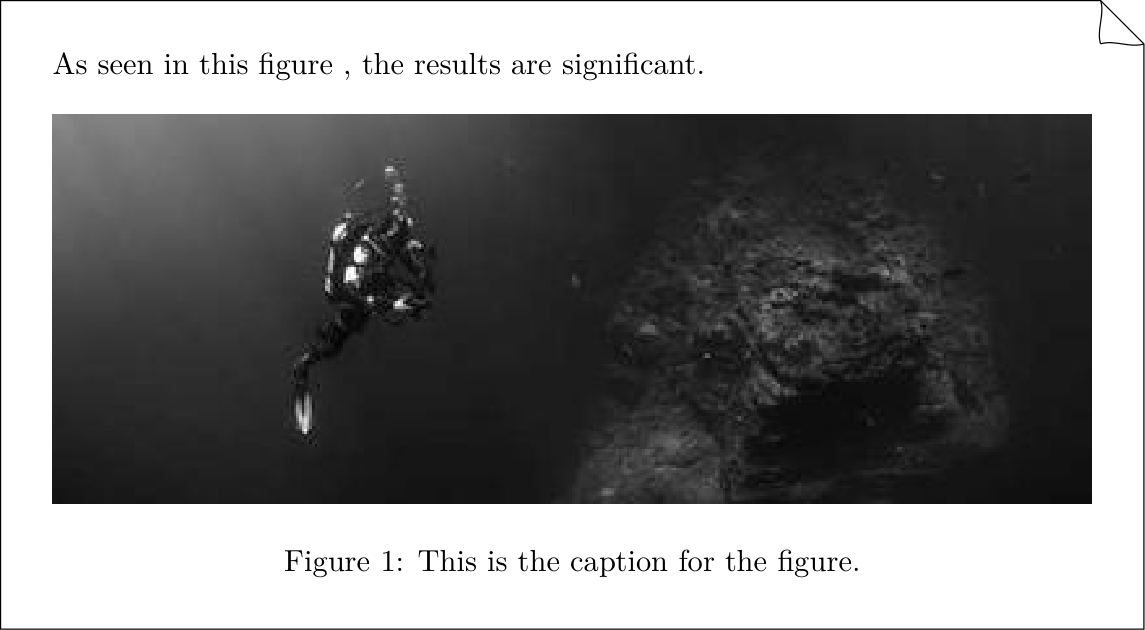

LATEX wraps figures/tables in figure/table environments, uses \caption{} for the text, and \label{} for cross-references:
As seen in Figure \ref{fig:my-figure}, the results are significant.
\begin{figure}[htbp]
\centering
\includegraphics{image.png}
\caption{This is the caption for the figure.}
\label{fig:my-figure}
\end{figure}
Addressing issues¶
- Consistent numbering across a document
- Easy cross-references
- Short captions for lists of figures/tables
Coherent numbering¶
Markdown headings aren’t numbered, so figures/tables can’t piggyback on heading numbering. On the web that’s fine—hyperlinks rule the navigation story—but in print numbering is essential. Guideline:
Printed documents shall have numbered heading elements, figures, and tables for cross-referencing. Web documents, however, should not have numbered headings, figures, or tables, relying instead on hyperlinks for navigation.
Printed LATEX floats figures and tables, so writers can’t assume a caption stays “above” or “below” the reference. HTML is literal: the figure stays where you put it.
On printed documents, the words "above" and "below" when referring to figures and tables shall never be used, as their position may vary due to floating. On web documents, "above" and "below" may be used, as figures and tables appear exactly where they are defined.
Cross-referencing captions¶
That rule complicates cross-references: web versions prefer “this figure below,” whereas LATEX wants “Figure 2.” Examples:
As seen in [this figure below](#my-figure), the results are significant.
As seen [here](#my-figure), the results are significant.
The results [shown](#my-figure) are significant.
In LATEX you’d use:
As seen in Figure \ref{fig:my-figure}, the results are significant.
Language adds another wrinkle: “Figure” in English, “figure” (lowercase) in French mid-sentence, “Abbildung” in German, and so on. Hardcoding wording would be brittle.
Fortunately pymdownx.blocks.captions tracks IDs, so TeXSmith can bridge both worlds with a shared syntax:
As seen in [](#fig:my-figure), the results are significant.
Any link whose fragment starts with fig: is decorated with the assigned number. The HTML output looks like:
As seen in <a href="#fig:my-figure">Figure <span class="caption-number">1</span></a>, the results are significant.
In LATEX:
As seen in Figure \ref{fig:my-figure}, the results are significant.
Or with cleveref:
As seen in \Cref{fig:my-figure}, the results are significant.
Pandoc users write {@fig:my-figure}; the idea is the same.
Short caption names¶
Printed lists of figures appreciate a condensed caption. LATEX handles this via the optional \caption[] argument:
\caption[Short caption for list of figures]{This is the caption for the figure.}
TeXSmith reuses the Markdown alt text as that short entry:
/// figure-caption #my-figure
This is the caption for the figure.
///
The current syntax is a bit verbose. In the future we’d like a shorthand along these lines:
{#my-figure}
Caption: This is the caption for the figure.
Tables¶
Tables follow the same pattern:
| Header 1 | Header 2 |
|----------|----------|
| Cell 1 | Cell 2 |
Table: This is the caption for the table. {#my-table, short="Short caption for list of tables"}
