Mermaid Diagrams

Just like MkDocs, TeXSmith understands Mermaid diagrams. Browsers render them on the fly, but PDFs need static assets, so TeXSmith converts each diagram into a vector PDF during the build. That requires either:

  1. Installing mermaid-cli and its dependencies in your environment, or
  2. Using Docker with the pulled image mermaidjs/mermaid-cli.

Inline diagram

```mermaid
flowchart LR
    A --> B
    B --> C
```

flowchart LR
    A --> B
    B --> C

External diagrams

Sometimes diagrams live better outside the Markdown. TeXSmith supports:

  1. Reference external .mmd / .mermaid files.
  2. Embed Mermaid Live snippets using pako: URLs for live editing.

The texsmith.extensions.mermaid extension sniffs out these references, pulls the content in, and treats inline/external sources the same way.

Using a mmd file is as simple as including an image:

![Build pipeline](../assets/mermaid.mmd)

%% Build pipeline
packet
    0-15: "Source Port"
    16-31: "Destination Port"
    32-63: "Sequence Number"
    64-95: "Acknowledgment Number"
    96-99: "Data Offset"
    100-105: "Reserved"
    106: "URG"
    107: "ACK"
    108: "PSH"
    109: "RST"
    110: "SYN"
    111: "FIN"
    112-127: "Window"
    128-143: "Checksum"
    144-159: "Urgent Pointer"

Mermaid Live encodes diagrams via Pako (a compression library) so you can share/edit them through URLs:

![Online Diagram](https://mermaid.live/edit#pako:eNpVTctugzAQ_BVrT4lEEMQEiA_tIemt7aE9tX
EODl4eSrAtY5q2iH8vEBGpe1jtzOzMdJBpicAgv-hrVgrryPMbV2SYxg1o8T7uJVmtHoipsvNhXxWkNcfby8hMU
pV3O3E6iQKbx_6mVfmgcHjVHMaPxqE5vOgvJLm2V2El0Qon9jjXobnX_Iv4wGbO0GbxpOQSPChsJYE526IHNdpa
jBC60cjBlVgjBzacUtgzB676wWOE-tS6nm1Wt0UJLBeXZkCtkcLhvhKFFfWdtagk2p1ulQO23tApBFgH38DCMPG
TMKI0TKKABkHswQ-wlPrxOtrSKNnSOA2SsPfgd2oN_DTZ9H9_ZXFC)

When TeXSmith renders HTML/PDF it wraps the image with a link to the Mermaid Live editor. Click the preview to inspect the source:

%% Example Pako
flowchart LR
    start(Start) --> pick[Dig up]
    pick --> if{Cabbages?}
    if --"No"--> step[Move forward one step]
    step --> pick
    if --"Yes"--> stop(End)

Rendering

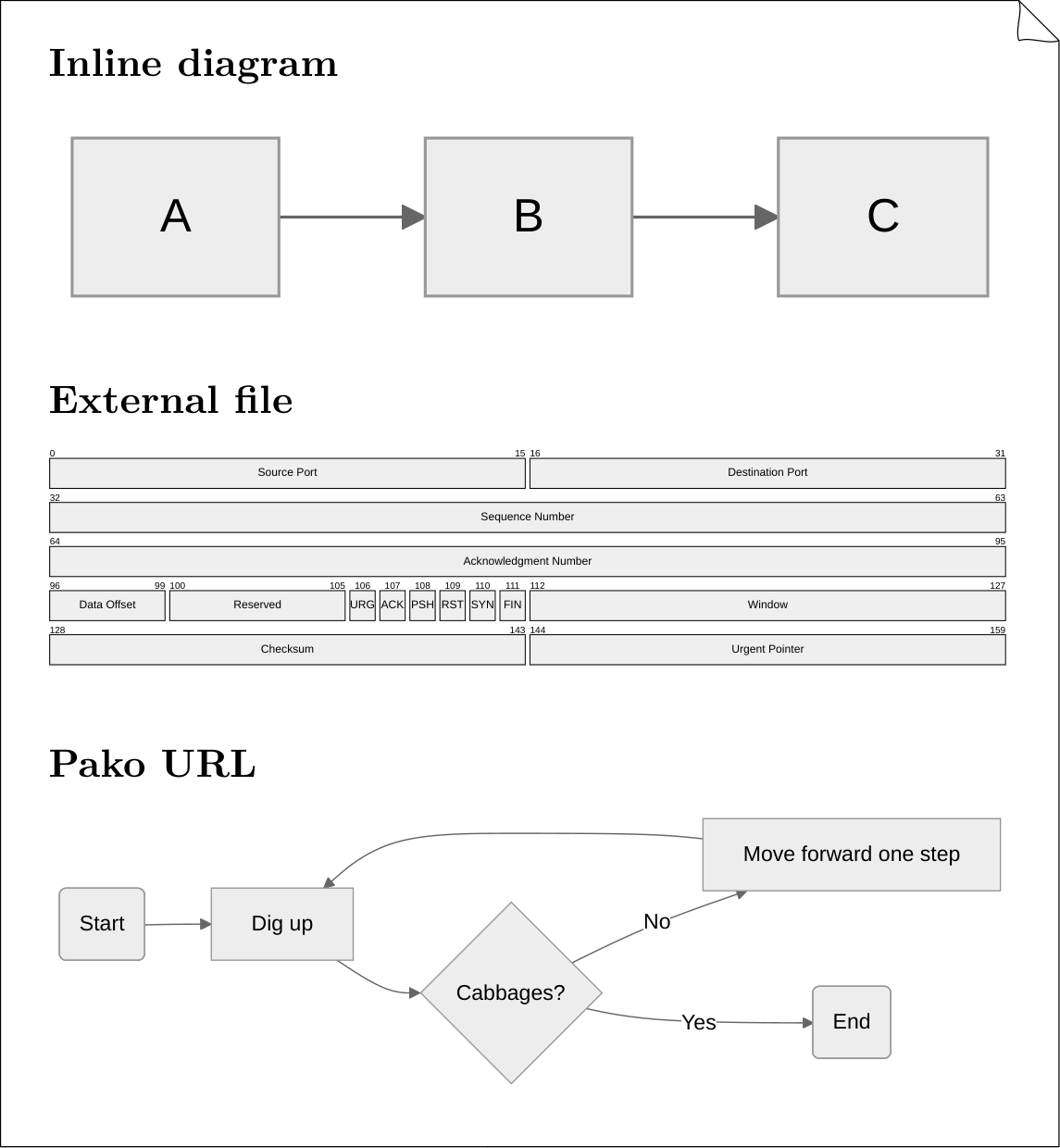

Here’s how the diagrams look once TeXSmith embeds them:

Snippet

Conversion by TeXSmith

All Mermaid diagrams are converted to PDF and included with \includegraphics so they integrate cleanly with templates and floats.

Printed output might deserve a different theme. Point mermaid_config to a JSON config (front matter or CLI --attribute press.mermaid_config=...) to override:

---
press:
  mermaid_config: mermaid-config.json
---

Alternatively, you can add a mermaid-config.json file to the ~/.texsmith/ directory to apply it globally to all your TeXSmith projects.
