Progress Bars

The texsmith.progressbar extension mirrors the pymdownx.progressbar syntax and converts it into commands powered by the progressbar package. It is enabled by default, so you can drop the [=75% "Done"] shorthand in your Markdown and keep both the HTML preview and the PDF build in sync.

Syntax

[=25% "Research"]
[=50% "Implementation"]
[=75% "Review"]
[=100% "Launch"]{: .thin}
  • Values must be percentages (0 – 100). TeXSmith clamps the values if needed.
  • The quoted label is optional; when omitted the percentage is used.
  • Trailing attribute lists ({: .class #id }) attach CSS classes and HTML attributes. Use the .thin class to halve the bar height (e.g. for tables or dense summaries).

output

During rendering, TeXSmith emits a \progressbar call with the following defaults:

{\progressbar[
  width=9cm,
  heighta=12pt,
  roundnessr=0.1,
  borderwidth=1pt,
  linecolor=black,
  filledcolor=black!60,
  emptycolor=black!10
]{0.73} Launch}

The .thin class switches heighta to 6pt. If you need more control, wrap the Markdown block in a raw fence and tweak the options directly.

Example project

Use the bundled examples/progressbar project for smoke tests or screenshots:

cd examples/progressbar
texsmith progressbar.md --template article --output-dir build --build

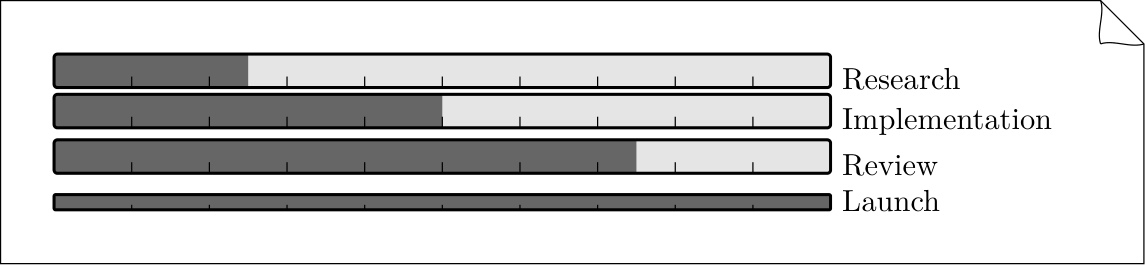

Snippet
