Images¶

Images can be included in Markdown using the following syntax:

![Alt text](https://picsum.photos/400/150){width=50%}

The attribute list scales the image directly in the source. width, align, media and per-format options (draw.io's crop=) all live there.

An image with a caption line or an anchor is promoted to a numbered float; a bare image stays inline.

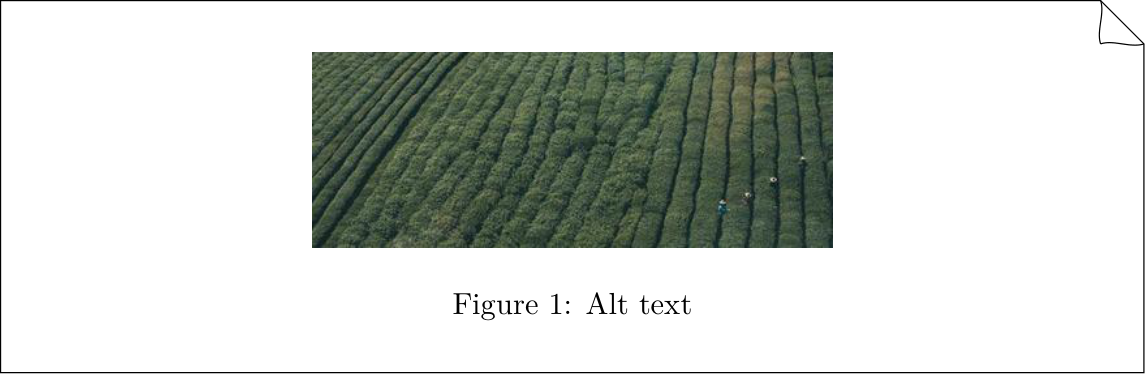

![Short caption for the list of figures](https://picsum.photos/400/150){width=50%}

Figure: The long caption, with **Markdown**. {#fig:noise}

A video or audio source (![Demo](demo.mp4)) is a player on the web and, in print, its poster frame with the URL as a textual reference; {media=web} hides it from print altogether.

Sub-figures¶

A figure container groups images into one float:

::: figure {cols=2}
![Boot](boot.png){#fig:boot}
![Crash](crash.png){#fig:crash}

Figure: Watchdog traces before and after the fix. {#fig:traces}
:::

The container takes one figure number and each image takes that number suffixed with a letter, so @fig:crash reads “figure 1b” and an image never consumes a number of the fig series on its own. The cases — a lone image, a container holding prose, a container with no caption — are spelled out under Captions.

Draw.io diagrams¶

A .drawio file included as an image is exported to a vector PDF during the build:

![Euclidean GCD](pgcd.drawio){width=60%}

The export is cropped to the drawing by default — the surrounding canvas the diagram sits on is discarded, so the figure carries no unexpected white margin and width= scales the drawing itself. When the page layout is part of the diagram (a frame, a title block, deliberate margins, several drawings placed at fixed positions on the same sheet), ask for the page instead with crop=false:

![Site plan](plan.drawio){width=100% crop=false}

This is draw.io's Size: Page Size export: the output covers the page(s) the drawing spans, at the pageWidth / pageHeight of the diagram, whichever backend (playwright, local, docker) performs the conversion.

The same diagram can appear both ways in one document; each variant is exported and stored as its own asset.

To flip the default for a whole document, set drawio_crop in the front matter (or --attribute press.drawio_crop=false on the command line); an image attribute still wins over it:

---
press:
  drawio_crop: false
---
